STREAM ESSENTIALS KIT
Take full control of your audio during your game, experience a high-quality voice

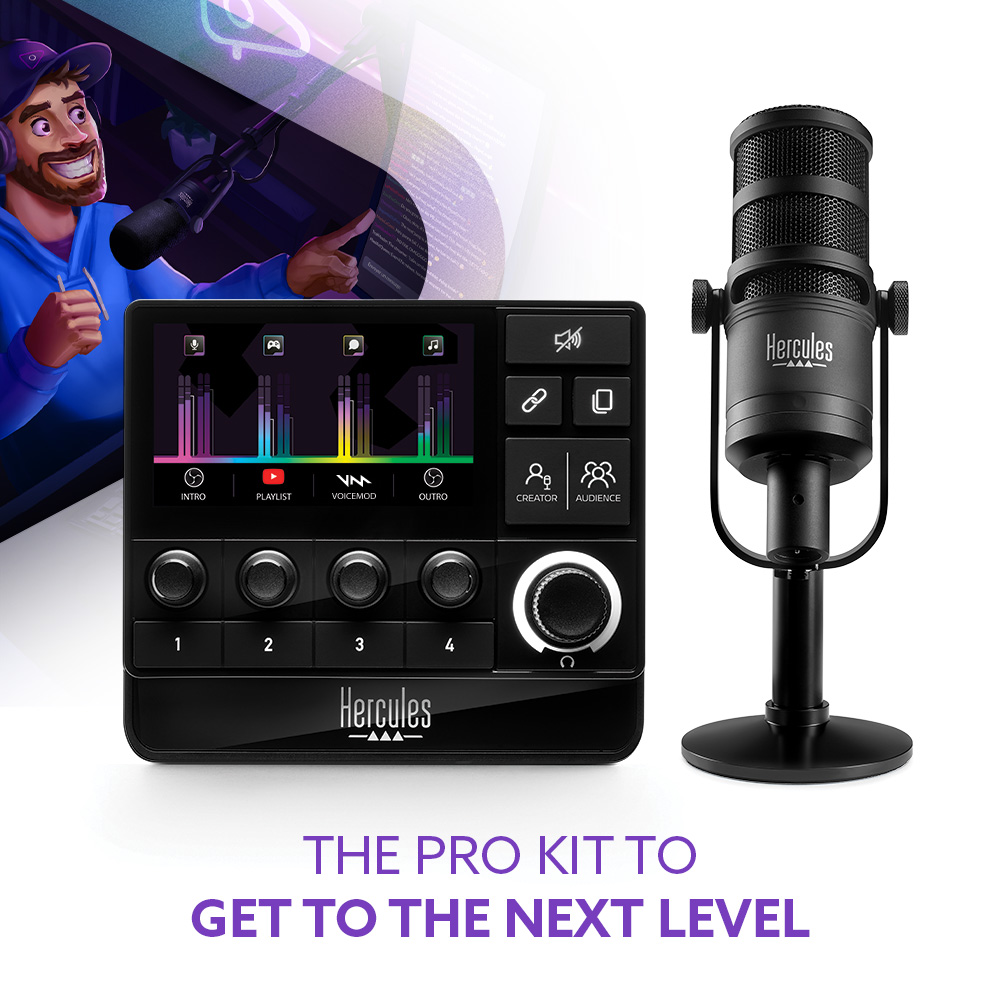

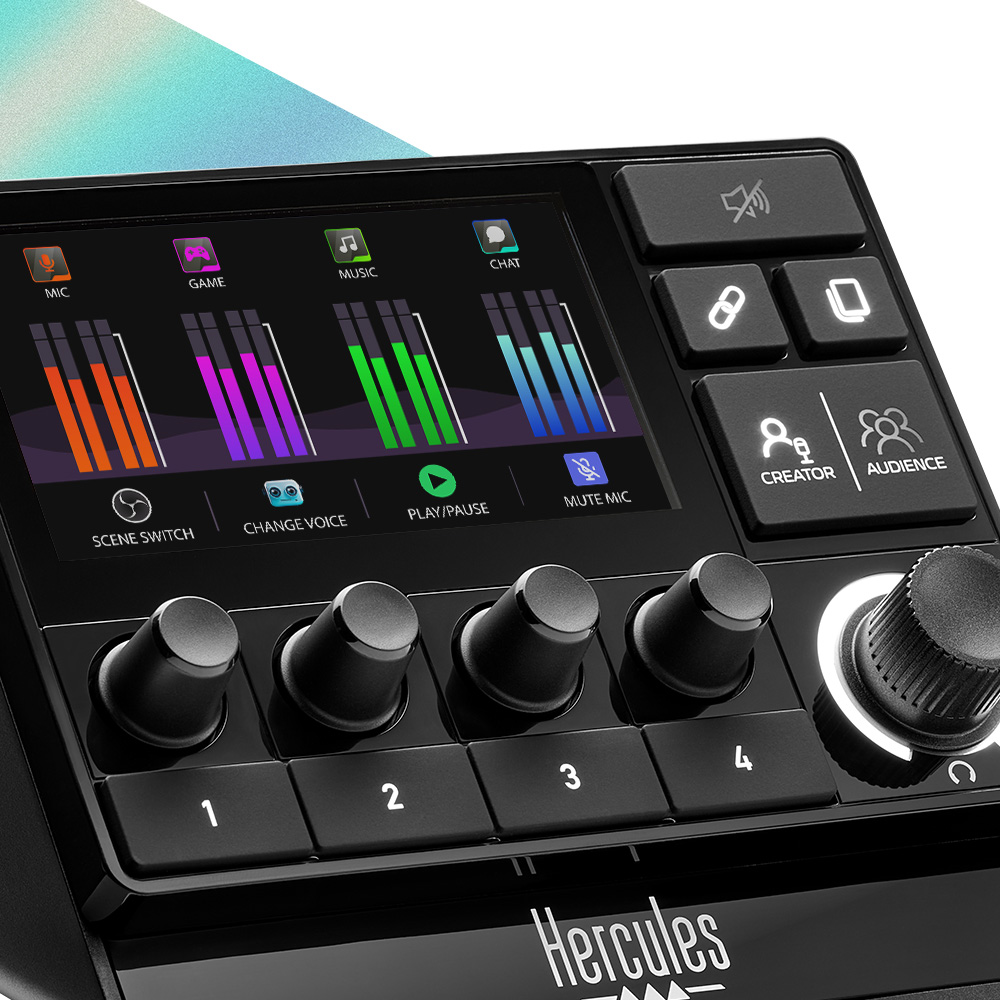

Hercules Stream Essentials Kit offers the best bundle if you want an XLR audio gaming setup. With the Hercules Stream 200 XLR and the new Hercules XLR microphone, the HXD-700, you will have everything you need to control and broadcast a clear and high-quality sound. Hercules Stream 200 XLR is an audio controller featuring a built-in sound card, allowing streamers to separate the audio mix that they’re listening to from the mix being played for their audience. Thanks to this audio controller with a built-in LCD screen, you can manage all your audio sources in real time: games, chat software, music, XLR microphone, game console, second computer, and more! Hercules Stream 200 XLR lets you enjoy a customized experience by individually viewing and controlling the sound level of up to 32 audio tracks per profile — for you, and for your audience! Instantly enable, turn down, turn up, mute or unmute the sound!
More than an audio controller, Hercules Stream 200 XLR is also a command center: you’ll love using the up to 32 handy assignable action buttons per profile to customize your controls. Control the volume of your mate on Discord, manage your playlist on Spotify, start your stream or change scenes with OBS or Streamlabs, change your voice with Voicemod, and more!
Complete sound card
4 volume level management rotary buttons (with mute support)
Up to 32 tracks, 8 pages of 4 tracks each
2 x 2 stereo VU meters for each track
1 Creator/Audience mix switching button
1 volume control link button
1 page button
1 mute all button
1 headset output + headset volume encoder
1 XLR microphone input with 48V phantom power
1 optical connector
1 line-in + 1 line-out ports

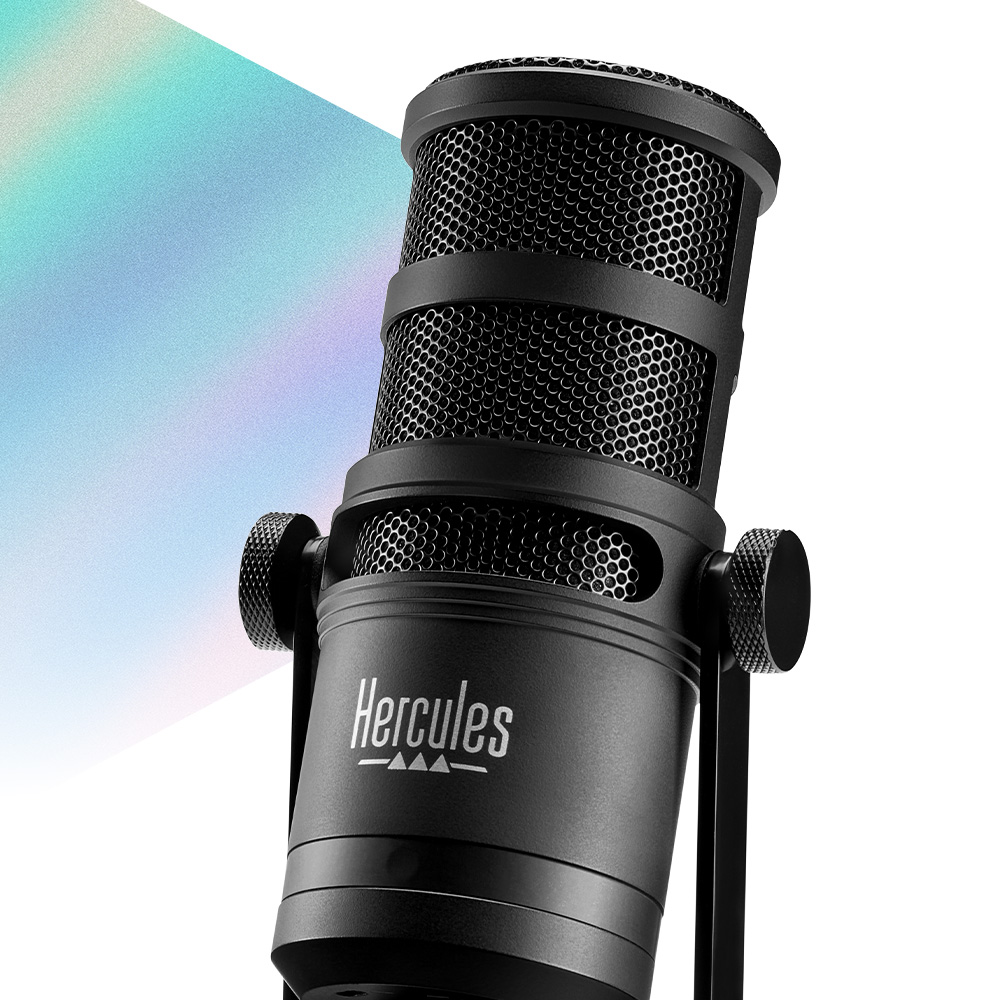

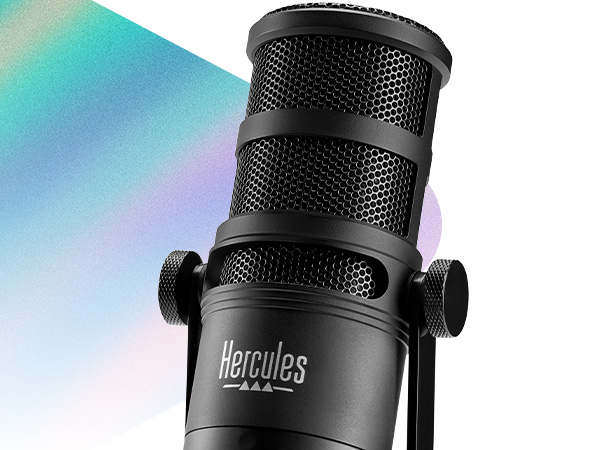

HIGH-FIDELITY XLR MICROPHONE
Unidirectional dynamic capsule for a warm and precise voice
XLR output for professional setups
Low cut and mid range boost with physical toggle activation
Metal stand
XLR cable + external mic pre-amp

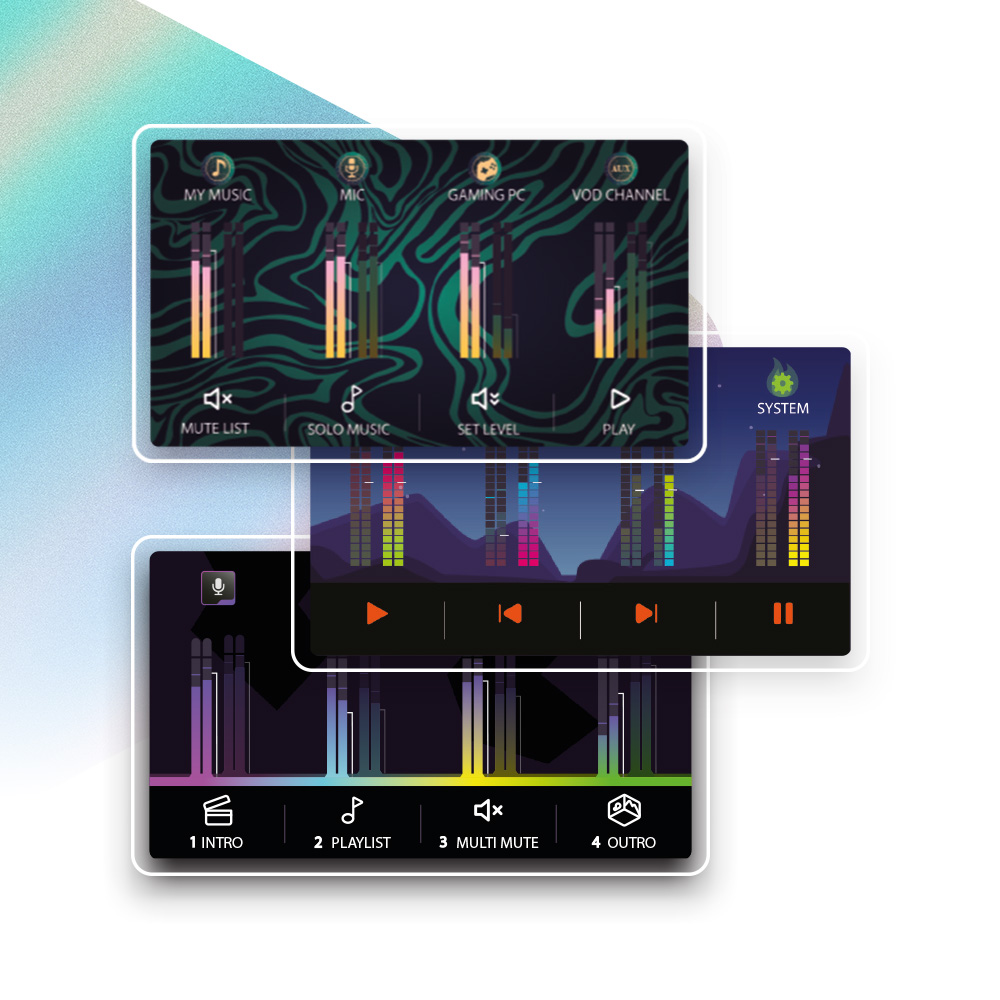

FULLY CUSTOMIZABLE
4 action buttons with up to 32 assignable actions (mute your mate on Discord, URL launcher, scene change, voice change etc.)
Choice of colors and styles for VU meters
Custom backgrounds and icons
Create up to 12 profiles

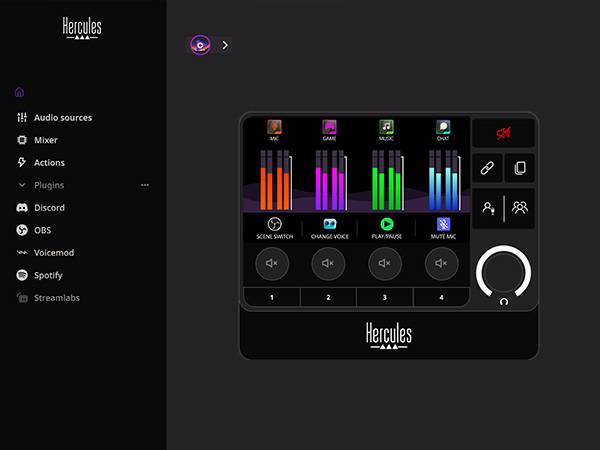

INTUITIVE SOFTWARE – HERCULES STREAM CONTROL APP
Core gaming apps are pre-integrated in the software (Discord, Spotify, Voicemod, OBS and Streamlabs)
Built-in guidance (setup assistance, plug-and-play product, drag-and-drop interface)
Configurate your XLR microphone with the software to improve the rendering (compressor, limiter, EQ, etc.)
INTEGRATED PLUGINS FOR GAMERS
KEY POINTS:
- Real-time control of all your volume levels: 4 volume level management rotary buttons (with mute support) that control up to 32 tracks simultaneously, 8 pages of 4 tracks each. Page management button, headset volume encoder, Mute All button, audio control from other devices (game console, second computer…), 1 headset output, 1 XLR microphone input, 1 optical connector, 1 line-in port, 1 line-out port
- Live management of creator and audience mixes: 2 x 2 stereo VU meters for each track, Creator/Audience mix switching button, volume control link button, live adjustment without having to use the app
- Mixer with built-in audio, advanced audio features: advanced XLR microphone settings, Mute List, Solo, Push to Mute, included preamp for high-fidelity vocal sound
- Integrated Hercules Stream Control app: core gaming apps pre-integrated in the software (Discord, Spotify, Voicemod, OBS, Streamlabs), built-in guidance (setup assistance, plug-and-play product, drag-and-drop interface). Configurate your XLR microphone with the software to improve the rendering (compressor, limiter, EQ, etc.)
- Fully customizable: up to 32 assignable action buttons (mute your mate on Discord, URL launcher, scene change, voice change etc.), choice of colors and styles for VU meters, custom backgrounds and icons, profile management
- HXD-700, the new Hercules XLR microphone: broadcast a warm and precise voice with the unidirectional dynamic capsule, obtain a low cut and mid range boost with physical toggle activation, includes a metal stand and an anti-pop for a clearer voice.
- 3 months of Voicemod Pro included: get access to over 140 voices and awesome sound effects, change your voice or use your soundboard through the action buttons, create your own voice with Voicelab
TECHNICAL SPECIFICATIONS
| STREAM 200 XLR | |
|---|---|
| DIMENSIONS | 155 x 110 x 115 mm / 4.6 x 4.3 x 3.7 inches |
| WEIGHT | 543 g |
| SCREEN | 4.3 inches / LCD Type : TFT |
| CONTROLS | 4 encoders, 4 action buttons, screen luminosity control button , panic button, page change button, link button: Creator/Audience button |
| CONNECTION | Windows® computer : via USB (cable included) |
| POWER | Power supply via included USB cable (<2,5W) |
| INTERFACE | USB 2.0 Tye C ( Driver Required) |
| SAMPLE RATE | 24 bits / 48KHz |
| MIC IN | XLR ( Balanced ) / 6,35mm ( Single and Dual End ) x1 |
| LINE IN | 3,5mm TRS, Stereo x1 |
| LINE OUT | 3,5mm TRS, Stereo x1 5dBV |
| OPTICAL | Optical In, Toslink x1 |
| PHONES OUT | 3,5mm TRS, Stereo x1, 64mW on 32Ω |
| MIC EFFECTS | Noise Gate, Compressor, Equalizer, Limiter |
| MIC GAIN | 20db Internal amplifier + 24dB adjustable |
| FRAQUENCY RESPONSE | 20Hz to 20kHz |
| DYNAMIC RANGE | 110dB |
| HARDWARE PLAYBACK SOURCES | Stereo playback x 5 |
| HARDWARE RECORDING SOURCES | Stereo recording x 5 |
| APP INCLUDED |
HERCULES STREAM CONTROL MINIMUM SYSTEM REQUIREMENTS Windows® 10 or higher, USB port |
| MIC PRE-AMP | |
|---|---|
| Gain | 24dB JFET Amplifier ( need 48V ) |
| HXD-700 | |
|---|---|
| DIMENSIONS | 207 x 79 x 53 mm / 8,1 x 3,1 x 2,1 inches |
| WEIGHT | 380 g |
| CAPSULE TYPE & POLAR PATTERN | Dynamic Unidirectional - Cardioid |
| IMPEDANCE | 350Ω±20％ |
| SENSITIVITY | -56±3dB (at 1KHz ，0dB＝1V/Pa) |
| FREQUENCY RESPONSE | 50Hz～18KHz |
| TOGGLES | Low cut and mid boost |
| ACCESSORIES |
Antipop foam Thread adaptor 5/8” XLR cable |
| BOX CONTENTS |
|---|
| HERCULES STREAM 200 XLR |
| HXD-700 Microphone |
| Type A to C USB power cable |
| XLR cable |
| Metal stand |
| 5/8’’ thread adaptor |
| Antipop foam |
| Link to download Hercules Stream Control app |
| Warranty card |
| Voicemod Voucher |
FAQ
Which operating systems are compatible?
It's available on Windows 10 and beyond (64bit)
How many audio channels can be used at the same time ?
32 channels, 8 pages of 4 channels.
What inputs and outputs are available?
XLR entry with 48V phantom power supply, Optical in, Line In, Line out and phones out.
How many actions are assignables ?
32 actions, 8 pages of 4 actions.
How can we control the sound the audience hears independently of the sound we hear?
You can use the Audience/Creator button that allows you to switch between the Audience mix and the Creator mix.
